Description

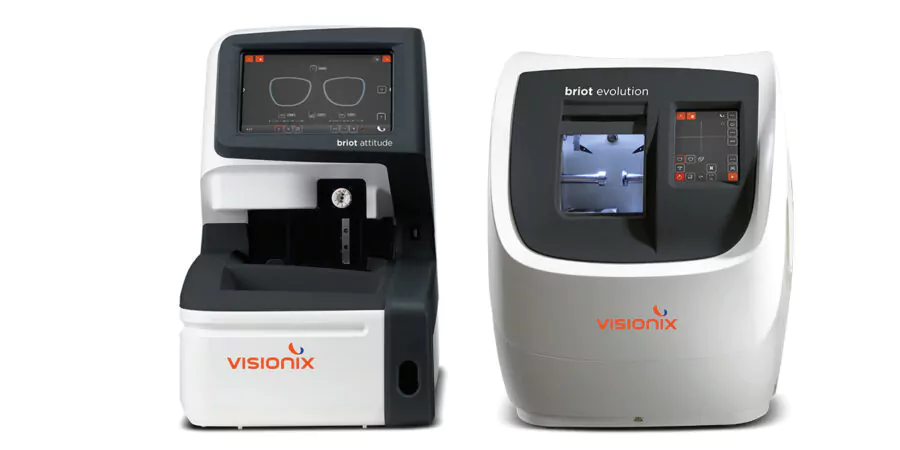

The Briot Attitude Evolution Lens Finishing System by Visionix is a top solution for optical labs. It offers precision, speed, and versatility. This system is perfect for optometry practices and wholesale labs. It makes the lens finishing process easier and ensures high-quality results with less effort.

Now, using the best available shape reproduction processes—TrueScan and GraviTech—gives the shape perfect dimensions. This is followed by the unbeaten automatic blocking process and superior edging.

The Briot Attitude Evolution Combo is an important tool for opticians. It helps make the assembly process quick and very reliable. The Torque Management System optimizes the edging cycle time without the risk of lens slippage.

Engineers designed the Briot Attitude Evolution Lens Finishing System for speed, accuracy, and flexibility. It is perfect for modern optician workshops and in-house optical labs.

This advanced system combines TrueScan and GraviTech® shape reproduction processes. It ensures perfect dimensions and reliable performance, making it a key part of the optician’s assembly line.

Key Features & Technologies

• TrueScan™: High Curve Frame Tracing

Effortlessly traces extreme wrap frames with a gentle, non-deforming touch, ensuring frame integrity and rapid workflow.

• GraviTech®: Gravity-Based Optical Tracing

A patented process places lenses face down. It uses gravity to recognize their shape accurately. This works well even on complex and high base-curve lenses. It can also create accurate drill holes in just seconds.

• Wavefront Technology (Shack Hartmann)

Visualize actual lens designs, laser engravings, and centering marks. Based on print layout or lens engravings, achieve perfect centration, ensuring the best visual correction for every wearer.

• Intelligent Shape Smoothing

Reconstruct broken or defective demo lenses accurately and easily, minimizing waste.

• Visual Lens Preview

A high-definition camera lets users preview the lens and ensure the perfect fit before edging begins.

Efficiency & Sustainability

• 50% Faster than previous models for basic bevel jobs.
• 34% Faster for grooved (Supra) jobs.
• 32% Faster for rimless jobs.
• Reduced Water Use: This model uses only 5 liters per edged lens, compared to 16 liters in older models. This is a better choice for the environment.

Advanced Edging & Drilling

• Dynamic Angled Drilling/Grooving: Up to 30° adjustable, with Best-Fit® technology for perfect finishing.
• Mini Bevel Capability: 90mm diameter wheels perform detailed beveling, achieving superior aesthetics and fit—especially in thin metal frames.
• Five Bevel & Five Grooving Modes: Automatic, Percentage, Base Curve, Controlled (Manual), and Front Following.

Performance & User Experience

• Brushless Industrial Motor: Quiet, fast, and robust operation with low maintenance.
• Guided Workflow: The system walks users through each parameter, minimizing errors.
• Automatic Variable Chuck Pressure: Optimized based on lens material and coatings.
• Comprehensive Shape Library: Stores up to 10,000 shapes and 5,000 jobs with advanced search.

Technical Specifications

• Edger (Evolution)

Dimensions: 570 mm (H) x 510 mm (W) x 615 mm (D) | Weight: 65 kg (143 lb)

Power: 230V/50Hz (10A), 120V/60Hz (20A), 2300W

Noise Level: 66 dB

Compatible Materials: CR39, Polycarbonate, Trivex®, Tribrid®, High-Index, Glass

Minimum Edging Diameters: Rimless Polish: 17mm, Grooved Polish: 18.2mm, Bevel Polish: 18.6mm, Polish w/Safety Bevel: 21mm

• Tracer-Blocker (Attitude)

Dimensions: 590 mm (H) x 360 mm (W) x 565 mm (D) | Weight: 29.5 kg (65 lbs)

Power: 100-240V, 50-60 Hz

Maximum Shape Diameter: 80 mm

Included Functions

• Frame, demo lens, and pattern tracing
• Drill hole recognition and import/export
• Wavefront lens mapping and measurement
• Full OMA connectivity and Briot Link™ remote service ready

Benefits for Your Practice

• Enhanced Productivity: The system’s speed and accuracy reduce turnaround times, allowing for same-day or next-day eyewear delivery.
• Cost Savings: By bringing lens finishing in-house, practices can save on outsourcing costs and increase revenue.
• User-Friendly Interface: Intuitive software guides users through the finishing process, minimizing the learning curve.
• Compact Design: Its space-saving design fits comfortably in smaller offices, maximizing space utilization.

Why Choose Briot Attitude Evolution?

• Unmatched Speed & Efficiency: Complete jobs faster than ever before, including rimless and high-curve frames.
• Superior Accuracy: Advanced technologies ensure flawless results on every job.
• Eco-Friendly Operation: Reduced water consumption supports sustainability.
• Engineered in France: Assembled in Normandy with strict quality control and a 2-year warranty.

What’s Included

• Briot Attitude Evolution Edger
• Tracer-Blocker Unit
• Integrated high-definition camera and display
• Full software suite with guided workflow
• Comprehensive shape and job library
• All cables and connection accessories
• User manual & 2-year warranty

Reference

• Manufacturer Information
• Brochure

RIOT-ATTITUDE-EVOLUTION-BrochureEN

FAQs

Q: Can the Briot Attitude Evolution handle high-base curve and wrap frames?

A: Yes, TrueScan and GraviTech® technologies specifically design for extreme wrap and high-base-curve frames.

Q: Is it suitable for rimless and grooved jobs?

A: Absolutely. The designers optimized the system for fast, precise rimless and grooved finishes, allowing it to outperform previous models in speed and quality.

Q: What lens materials are compatible?

A: It works with all common materials, including CR39, polycarbonate, Trivex®, Tribrid®, high-index, and even glass.

Q: How eco-friendly is this system?

A: It uses only 5 liters of water for each edged lens. This is much less than older models and helps reduce your environmental impact.

Q: How is support and servicing managed?

A: The system comes with a 2-year warranty and a quick repair guarantee. It also has remote servicing through Briot Link™.
