Description

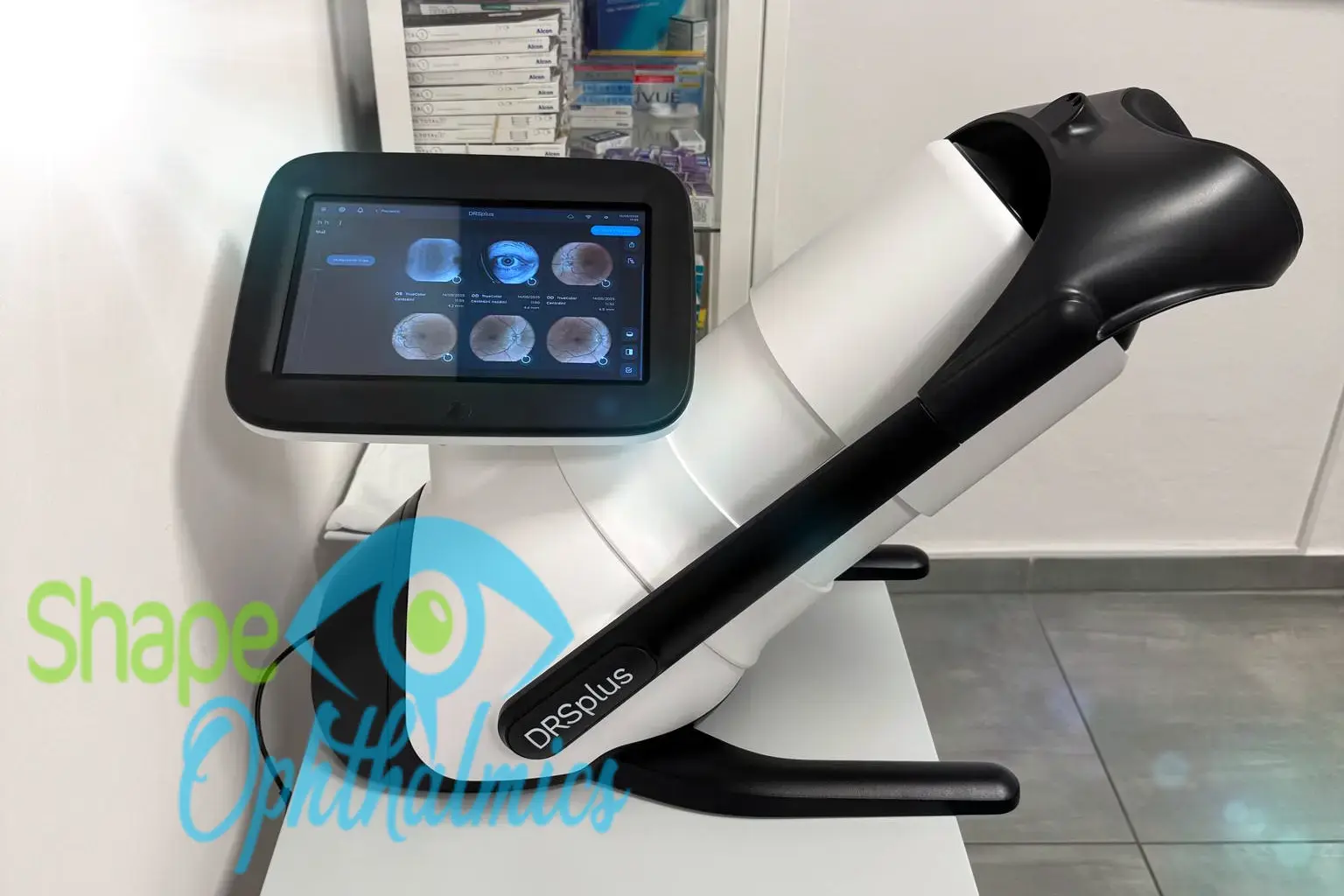

iCare DRSplus confocal fundus imaging system uses white LED illumination to provide high-quality TrueColor images. TrueColor Confocal Technology, considered a high image quality standard, provides detailed images with more excellent image sharpness, optical resolution, and contrast than traditional fundus cameras.

Confocal imaging is well known in ophthalmology as the standard of high image quality. The main characteristic of confocality is to reduce or suppress any scattered or reflected light outside the focal plane.

The fast and fully automated iCare DRSplus allows imaging through pupils as small as 2.5 mm without dilation, ensuring a comfortable patient experience. The user-friendly device, which offers the advantage of fast examination time, also helps increase clinics’ workflow.

iCare DRSplus Key features

• TrueColor Confocal Technology
• Multiple imaging modalities, including Red-free, external eye, and stereo-view imaging
• 2.5 mm minimum pupil size
• Fast, easy, and fully automated operations
• The mosaic function creates retinal panoramic views up to 80°
• Remote Viewer allows for reviewing from devices on the same local area network
• The remote Exam feature enables executing an exam from a distance

The iCare DRSplus is a fully automatic confocal actual color fundus camera and delivers detailed images up to 80° with impressive plasticity. The compact design of the DRSplus from iCare (formerly Centervue) impresses with easy handling thanks to fast and fully automatic operation – optionally also via remote triggering.

The new iCare® fundus scanner allows for high-quality, high-resolution fundus imaging, automatic alignment and acquisition, a 45º image in pupils up to 2.5mm, and in patients with cataracts, a 3D imaging technology in the Optical Disc, a panoramic photo up to 80º.

The retinal scanner at the price of a traditional fundus camera

Confocal technology enables comfortable imaging through narrow pupils up to 2.5 millimeters in size without dilatation, ensuring a comfortable acquisition process.

Its proper color confocal technology effortlessly overcomes media opacities such as a cataract without dilatation of the pupils. Customer data is encrypted and password-protected by data protection regulations. The DRSplus enables perfect interaction between opticians, optometrists, and ophthalmologists.

Different imaging modalities for detail-rich imaging

TrueColor Confocal Technology with white LED promotes detailed 45° retinal images and allows for scanning through cataracts to aid clinicians in diagnosing and documenting ocular disease.

High-resolution red-free filtering enhances visualization of retina vasculature, blue images provide an improved view of the Nerve Fiber Layer (RNFL), and the red channel allows light to penetrate the deep layers of the retina. Infrared light provides detailed information corresponding to the choroid. External eye imaging can document eye surface and cornea conditions.

Stereo viewer technology creates an improved 3D perception of the disc. The mosaic function option automatically combines different retinal fields without user intervention, creating panoramic views up to 80°.

Patient-friendly and comfortable device

iCare DRSplus Confocal Technology speeds up exam time while ensuring a comfortable patient experience. The device permits imaging through pupils as small as 2.5 mm, and this non-mydriatic capability eliminates the need for dilating drops and dark environments. With reduced flash intensity for a softer effect on the pupil and quick and easy patient positioning, iCare DRSplus is a patient-friendly device.

Fast, efficient, and fully computerized operations

iCare DRSplus is an easy-to-use and intuitive imaging system that requires minimal staff training to obtain the highest quality images. iCare DRSplus offers a live IR preview, which contributes to an efficient capture workflow, while the filtering option simplifies image post-processing.

The fully-automated capabilities include auto-alignment, auto-focus, auto-exposure, auto-capture, and auto-montage (optional). Quick and easy patient positioning and speedy examination save time and make the workflow efficient.

Image reviewing made easy

iCare DRSplus capacitive touch screen allows for easy magnification and review of images’ details. Additionally, the optional remote viewer feature makes remote data review effortless, allowing any computer or laptop on the same local area network (LAN) to review iCare DRSplus images remotely, enabling data access and detailed analysis on multiple review stations.

Specifications

• Field of view: Single image (W x H): 45 ° x 40 °, mosaic up to 9 areas (W x D): 83 ° x 78 °
• Image Modalities: TrueColor, Red Free *, Blue *, Red *, External Eye, Stereo **, Mosaic **
• Superior ease of use: Auto patient recognition, auto alignment, and autofocus
• All-in-one Design. It does not require a separate instrument PC
• Simple network solution for both external viewers and data backup
• Size (W x H x D)300 mm (11.8”) x 450 mm (17.7”) x 650 mm (25.6”)
• Weight11 Kg (24 lbs)
• Rated Voltage100-240 VAC
• Frequency50-60Hz
• Power Consumption60W
• Electrical ClassIEC 60601-1 Class I
