Description

The Welch Allyn RetinaVue 700 Imager makes retinal exams simple and affordable in primary care, which, together with the RetinaVue Care Delivery Model, helps promote early detection and save vision loss in patients living with diabetes.

As the next generation of the world’s most advanced handheld retinal camera, the RetinaVue 700 Imager is designed to help make retinal exams simple and affordable for primary healthcare providers. This easy-to-use smart camera offers an automated retina imaging experience – featuring auto-alignment, auto-focus, and auto-capture.

The device offers flexible workflow options, including EMR connectivity and WiFi, enabling efficient information transfer and seamless integration into your clinical workflow. The RetinaVue 700 Imager works exclusively with HIPAA-compliant, FDA-cleared RetinaVue Network software–a RetinaVue Network software subscription is required and priced per camera, per month. The RetinaVue 700 Imager can be incorporated into the RetinaVue care delivery model, which helps primary healthcare providers increase access to diabetic retinal exams, improve patient outcomes, and lower population healthcare costs.

Features:

• The world’s most advanced handheld retinal camera
• 60º wide field of view to help you see more pathology in a single image
• 2.5 mm small pupil capability requires little to no chemical dilation (see directions for use)
• Automated handheld design is perfect for busy primary care clinics and mobile healthcare applications
• Three-axis motor supports automatic alignment and automatic image capture
• Smart camera technology assesses pupil size and lens clarity to save you time
• Image-quality assessment algorithm can help reduce re-imaging appointments
• Multiple connectivity options including wireless
• Meets ISO 10940 optical standard for ophthalmic instruments
• HIPAA/HITECH-compliant RetinaVue Network software has end-to-end data encryption
• RetinaVue Network software is hosted on the Microsoft® Azure™ cloud for security and compliance
• Fully integrated, bi-directional interfaces with EMRs including Allscripts®, Epic®, athenahealth®, NextGen®, Cerner® and many more Service & Support

Specifications

• Field of view – 60 degree (typical)
• Diopter range – -20 to +20 diopter (typical)
• Dimensions – 11.4″ L x 6.6″ W x 4.8″ H
• Weight – 2.8 lbs
• Illumination – Preview mode: infrared LED; Image capture: natural white LED
• Focus – Automatic and manual
• Image resolution – 2592 x 1944 pixels (5MP)

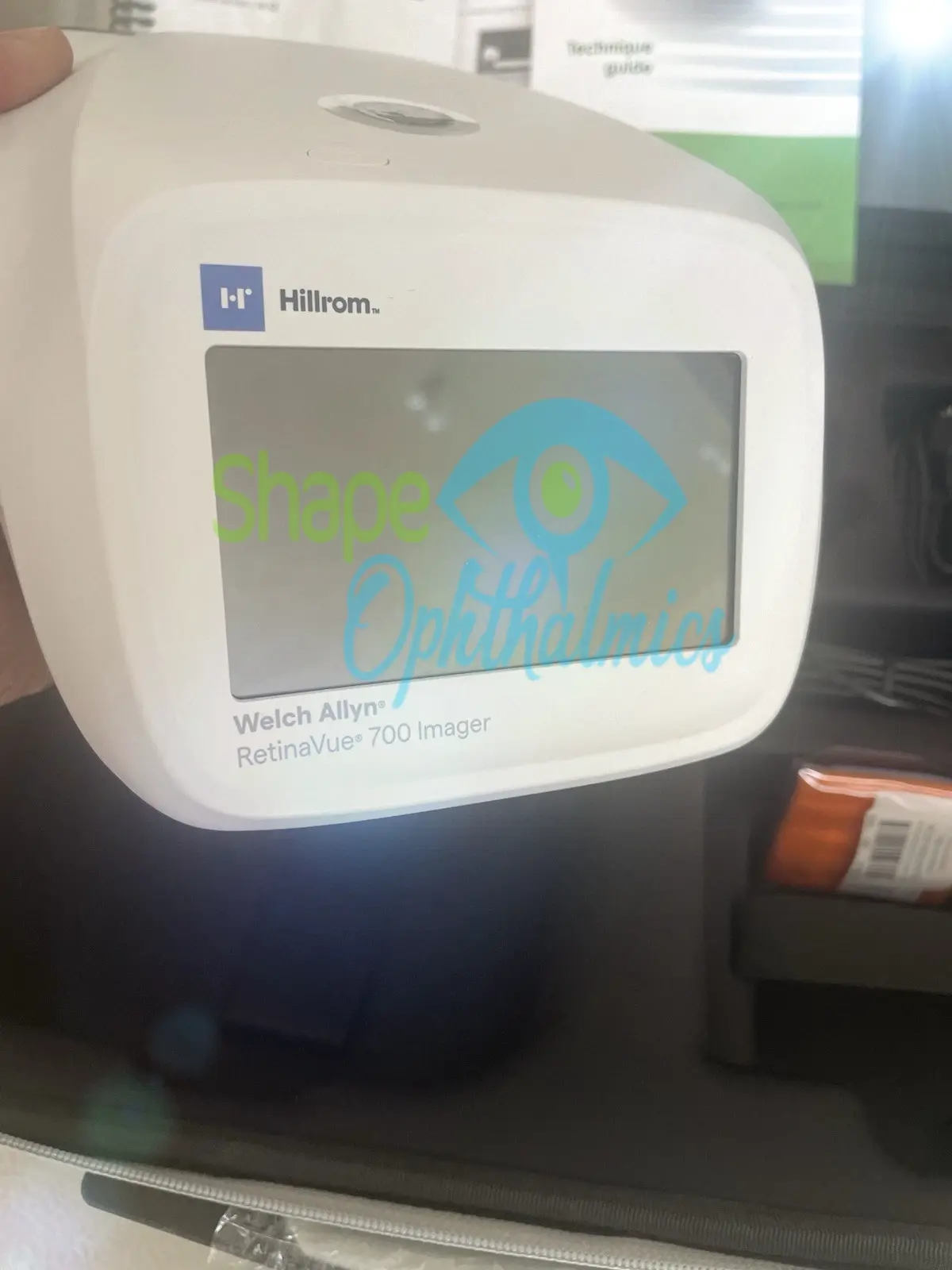

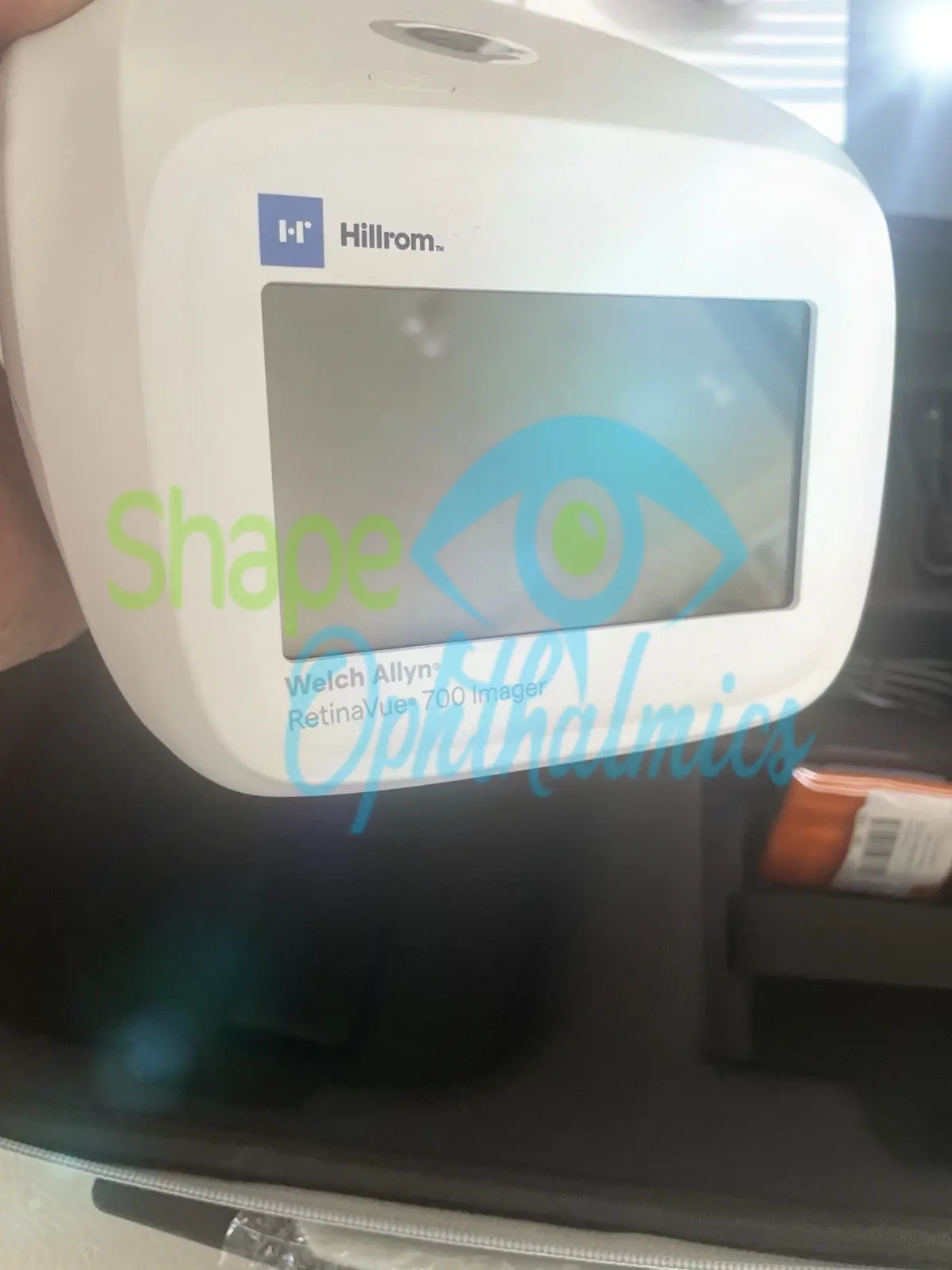

• LCD monitor – 4.3″
• Image format – Encrypted JPEG, DICOM
• Interface – Micro USB

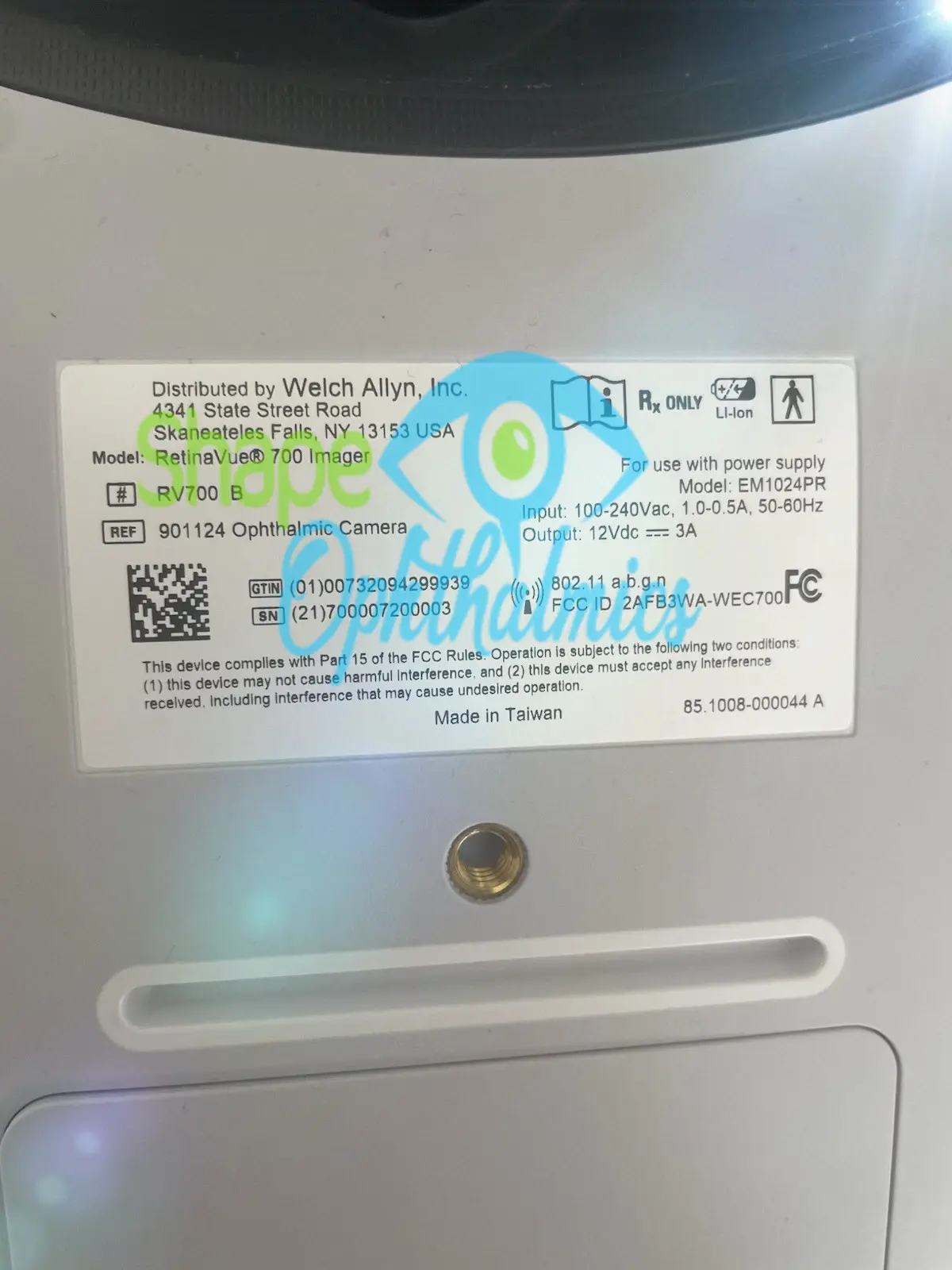

• Main power – 100-240 VAC, 50/60 Hz, 1.0-0.5 a; Output: 12 V DC, 3 A
