Description

Briot Emotion 2 is an all-in-one system that includes beveling, locking, drilling, grooving, and scribing in one unit. With Emotion 2, we have added our patented optical scanning technology, Gravitech®. With it, you can accurately scan a demo lens with perfect 1:1 shape reproduction in around 4 seconds.

Detecting drill holes has never been easier, as Gravitech® is not limited to the shape. It will also automatically scan the drill hole coordinates to complete your job in seconds. The high-definition optical system lets you see laser engravings and markings clearly and easily. With Emotion 2, the perfect fit is possible.

The Briot Emotion 2 is a multifunctional optical edging machine whose embedded technologies perfectly adapt to the optician’s workshop and preserve its autonomy. Powered by a 3D mechanical frames tracer and Gravitech technology optical recognition of demo lenses, it realizes finishings such as grooving, drilling, and chamfering.

Briot Emotion 2 Features:

• “All-in-one” grinding center with a small footprint – 4 slide discs with Ø 90mm for all glass materials, including Trivex™ and the latest composites.
• Fully automatic drilling, milling, and grooving at a fixed angle of 10°
• GraviTech® technology for 3D true scans in seconds
• Fully automatic detection of drill holes and millings
• 4D scanner with “smooth scan” function for distortion-free scanning of all frame materials
• High-definition laser engraving detection for perfect centering of progressive and single-vision freeform lenses

Briot Emotion 2 All-in-one Finishing LabFeatures include:

• Gravitech® patented tracing technology
• Grinding wheel for beveling all materials
• Automatic polishing of CR-39, Hi-Index, Trivex, and Polycarbonate
• Intuitive Touch-screen icon-based interface
• Automatic internal/external safety bevel
• Continuous 3D mapping
• Grooving at a fixed 10° angle
• Superhydrophobic lens roughing process
• Bevel programs: automatic, program guided, manual, and flat
• ALL-IN-ONE Tracing / Blocking / and Lens Edging
• Integrated Drilling at a 10° angle
• OMA Compliant
• VCA Compliant
• CE Compliant
• UL Approved

Technical Specifications

Dimensions

• DEPTH: 23.6 in (600 mm)
• HEIGHT: 17.9 in (455 mm)
• WEIGHT: 151lb (68,5 Kg)
• VOLTAGE: 230 V-50 Hz, 115 V-60 Hz

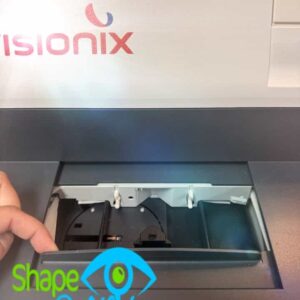

Tracing

• Automatic 3D-Tracing
• Monocular or Binocular Tracing Consecutively
• Smooth manual frame clamping
• Optical Tracing of all kinds of demo lenses with patented GraviTech® Technology
• Automatic Drill Hole Detection
• Shape Creator for freedom in designing shapes

Shape- Administration

• Job-Memory: 2,000 Jobs (incl. Centring and Edging Parameters)
• Shape-Memory: 10,000 Shapes with easy USB Database Import / Export
• Shape Modification: A / B / ½B / Circumference / Shape-Axis

Centering

• Single Vision, Bifocal, Trifocal, Progressive (Markings or Engravings) Parallax-free digital manual centering
• Manual blocking

Edging

• Processing of Glass, CR39, High Index, Polycarbonate and Trivex®
• Both-sided measuring of the lens with one touch probe
• V-Bevel with different programs
• Polishing of Flat and V-Bevel

Grooving / Drilling

• Grooving with a fixed angle of 10° incl. different programs
• Variable Groove width and depth
• Chamfering: Front in one step / Back in 3 steps
• Fixed 10° drilling angle for holes, slots, and notches

Communication

• OMA V3.10
• Remote Tracing Capability

In conclusion, the Briot Emotion 2 All-in-one Lens Finishing Lab is a cutting-edge product that offers exceptional precision and efficiency for eyewear manufacturing. Its advanced technology and user-friendly design provide high-quality lens edger, resulting in accurate prescriptions and optimal patient vision.

The Briot Emotion 2 All-in-one Lens Finishing Lab offers a comprehensive solution for eyewear manufacturing, including lens, edging, drilling, grooving, and tracing capabilities, making it an essential tool for optometrists, opticians, and other eyewear professionals. Its intuitive software and customizable settings ensure optimal performance, allowing quick and easy adjustments to meet specific patient needs.

Overall, the Briot Emotion 2 All-in-one Lens Finishing Lab is an excellent investment for any eyewear practice seeking to enhance its manufacturing capabilities and streamline its workflow. Its exceptional features, reliability, and user-friendly design make it a valuable asset that will improve patient outcomes and overall practice efficiency. Get the Affordable price from Shape Ophthalmics.
