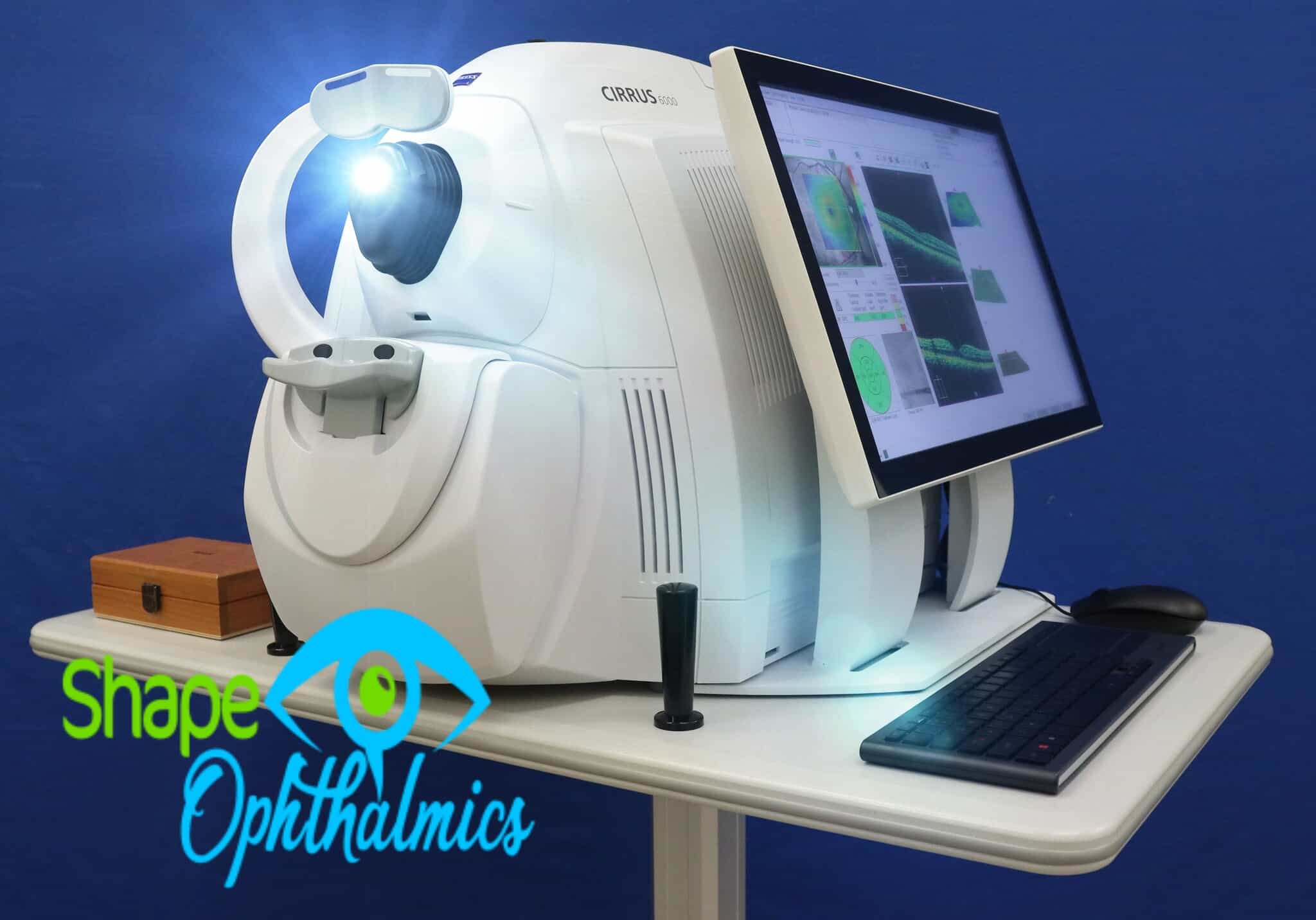

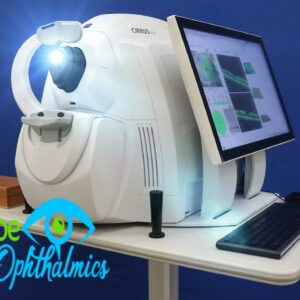

Description

CIRRUS 6000 is the latest product development in the already well-established portfolio of OCT devices designed to meet the requirements of all specialist areas of ophthalmologists in practices and clinics. The product offers customers high speeds and throughput, enabling even more patients to be examined faster with improved imaging and image quality.

Jim Mazzo, Global President of Ophthalmic Devices at Carl Zeiss Meditec, explained, “This system was designed with the patient in mind, enabling doctors to continue accessing their patient data from CIRRUS devices that are crucial to effective long-term patient care.”

The OCT Angioplex Cirrus 6000 from Zeiss Meditec is the most innovative instrument for computed tomography. It is one of the best instruments currently available for studying the retina and the optic nerve.

Increased efficiency in the ophthalmological practice

Cirrus 6000 is the latest product development in the portfolio of OCT devices designed to meet the needs of all specialist areas of ophthalmologists in practices and clinics. According to the manufacturer, the device offers customers high speeds and throughput so that more patients can be examined faster with improved imaging and image quality.

The technical characteristics of the new Cirrus 6000 have been developed with the aim of speed; Faster scans mean better image quality. The images generated by the new Cirrus 6000 result from an innovative technological update and represent state-of-the-art digital imaging.

“The CIRRUS 6000 is all about its speed. With increased speed comes greatly improved resolution and detail on cube, raster and OCTA scans, and the new faster CIRRUS enables me to incorporate these more reliable scans into my daily workflow and make important treatment decisions for my patients.”

Theodore Leng, MD, FACS,
Byers Eye Institute at Stanford, United States

The speed of Cirrus 6000, equal to 100kHz, exceeds previous versions and all other equipment available on the market and is the reference standard for OCT exams and OCT angiography exams.

The new CIRRUS 6000 model from Saturn Optical has improved features compared to the previous CIRRUS 5000 model, such as the possibility of expanding the field of view, thanks to the new OCT HD 1 Line 12 mm and OCTA scans up to 12 × 12 mm wide, increasing the scanning depth up to 2.9 mm and the resolution of Angiographic images thanks to the new AngioPlex HD 6 × 6 and 8 × 8 mm Scans.

Cirrus 6000 Key Features

• Wider and deeper OCT/OCTA scans with 12x12mm OCTA and a B-scan depth of up to 2.9mm
• HD AngioPlex – a new scan type that provides even more detail
• New workflow protocols to increase efficiency
• Patient-friendly “Wellness report” for enlightened patient communication
• OCTA scan with 12x12mm field of view and 2.9mm depth
• OCT scans are 270% faster than the previous Cirrus generation, and OCTA scans are 43% faster than the previous Cirrus AngioPlex
• Exclusive analysis protocols based on PanoMap analysis
• Through the DICOM protocol and the Zeiss Forum platform

Zeiss Cirrus 6000 OCT Technical Specifications:

• Methodology: Spectral-domain OCT
• Optical source: Superluminescent diode (SLD), 840 nm
• A-scan depth: 2.0 – 2.9 mm (in tissue)
• Scan speed: 100,000 A-scans per second
• Min. pupil diameter: 2.0 mm
• Resolution:
  • Axial resolution
  • Transverse resolution
  Five μm (in tissue), 1.95 μm (digital)
  15 μm (in tissue)
• Refractive error adjustment: -20D to +20D (dopters)
• Resolution:
  • Axial resolution
  • Transverse resolution
  Five μm (in tissue), 1.95 μm (digital)
  15 μm (in tissue)
• Posterior Segment scans:
  • OCT
  • OCTA
  Cube scan (Macula and Optic Disc)
  HD Raster (1, 5, 21-line, cross and radial); Raster scan length 3-12 mm;
  image averaging up to 100x
  3×3, 6×6, 8×8, 12×12 mm (Macula); 4.5×4.5 mm (Optic Nerve Head);
  14×10 mm (Montage), 14×14 mm (Montage)

Analytical applications

Retina:

• Macular Thickness Analysis with Reference Database (Diversified and Asian)
• Macular Change Analysis
• Advanced RPE Analysis
• 3D Visualization
• En Face Analysis
• CIRRUS Wellness Exam

Glaucoma:

• Guided Progression Analysis
• Ganglion Cell/IPL Thickness with Reference Database (Diversified and Asian)
• ONH Parameters with Reference Database (Diversified and Asian)
• Average cup-to-disc ratio
• Average, Superior, and Inferior RNFL Thickness
• CIRRUS Wellness Exam

Anterior Segment:

• 9 mm Epithelial Thickness and Pachymetry Mapping
• HD Cornea with Cornea Caliper Tool
• ChamberView™ Full Anterior Chamber Imaging for phakic IOL sizing and safety distance measurements
• Angle imaging and measurement tools for Glaucoma (AOD, TISA, SSA)

AngioPlex Metrix OCT Angiography Quantification:

• Macular
• Foveal Avascular Zone
• Vessel Density (ETDRS grid)
• Optic Nerve Head
• Capillary Perfusion Density
• Capillary Flux Index
• AngioPlex 2-visit comparison

Instrument Specifications:

• Weight: (77 lbs)
• Dimensions (L × W × H): (24.4 × 16.7 × 11.4 in)

This Zeiss Cirrus 6000 comes equipped with the following:

• 6 Month warranty

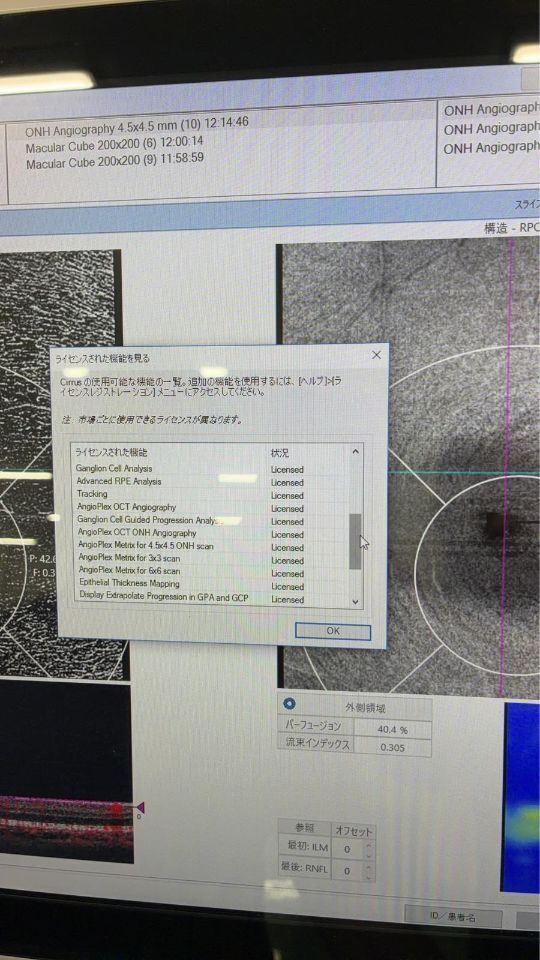

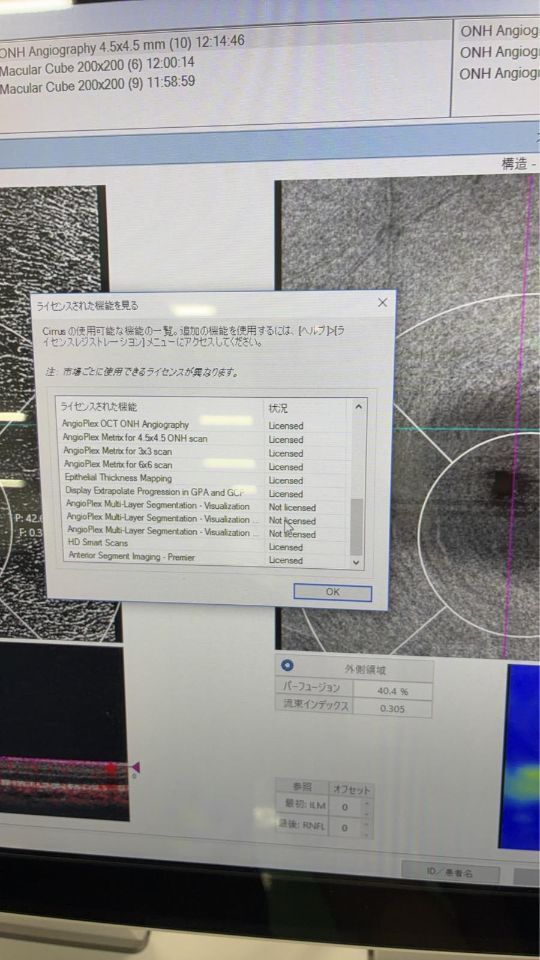

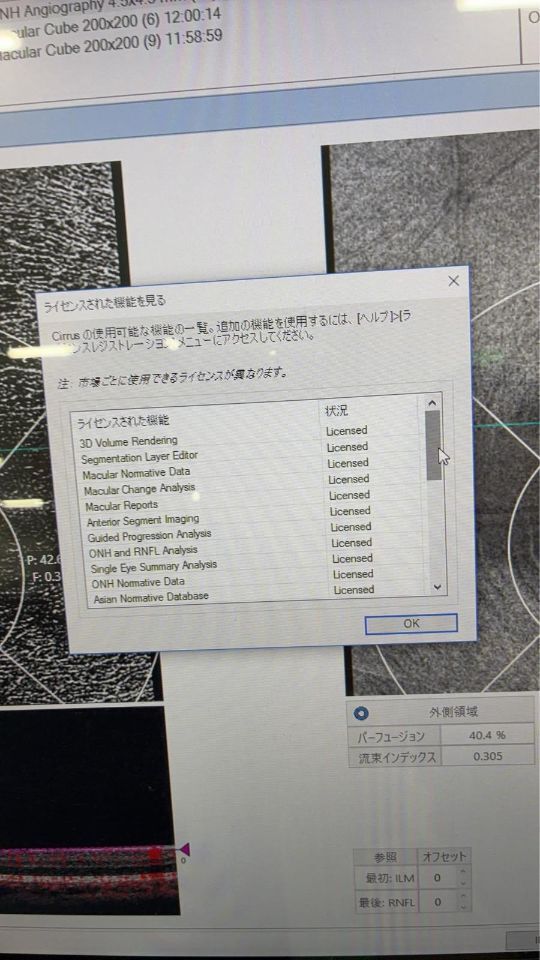

• Anterior Segment software
• Angioplex Software
• Power table

In conclusion, the ZEISS CIRRUS 6000 OCT System is an advanced imaging technology that provides accurate and detailed diagnostic information for eye health professionals. Its high-resolution images, advanced software, and efficient workflow make it an ideal tool for diagnosing and monitoring ocular diseases like glaucoma and macular degeneration.

The system’s ease of use and versatility make it an excellent choice for small and large clinics, allowing eye health professionals to provide top-quality patient care. With its cutting-edge technology and user-friendly design, the ZEISS CIRRUS 6000 OCT System is a valuable investment for eye care practice.

Source

• Manufacturer Information
• Brochure
