Description

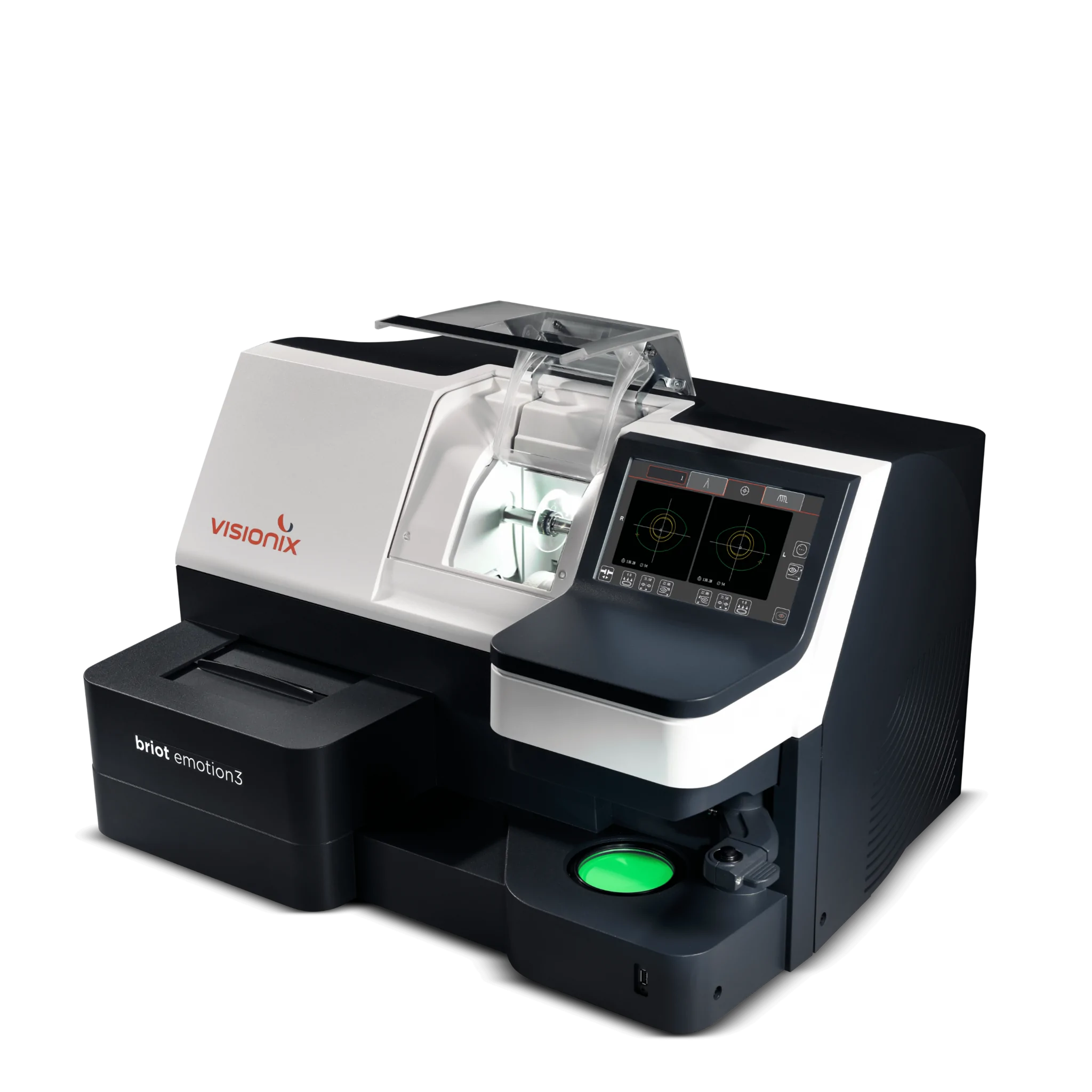

Improve your lab’s finishing workflow with the Visionix Briot Emotion 3. This all-in-one lens edger offers outstanding precision and easy use.

This system is made for busy optical practices. It takes care of every step, from tracing and centering to edging, grooving, and drilling. This way, you can focus on providing perfect eyewear without extra work.

The Briot Emotion 3 has a new anti-deviation edging cycle. This keeps the ophthalmic lens stable during edging.

It eliminates the risk of misalignment or damage. Combined with the double-sided pads recommended by Visionix, it offers increased stability and precision. The adjustable edging cycle speed allows secure work on high-value lenses, ensuring flawless finishes and optimal control.

Key Features & Benefits

• Gravitech® Optical Tracing
• Scan demo lenses in under 4 seconds with 1:1 accuracy—no fiddly mechanical adjustments required. This is perfect for high-volume labs that demand fast, reliable shape capture.
• Mechanical Tracer Backup
• If you don’t have a demo lens, the built-in mechanical tracer takes over, keeping your workflow smooth.
• Anti-Slippage Edging Cycle
• A new, controlled edging mode locks lenses in place throughout the process. Visionix’s double-sided pads provide strong stability, even for ultra-high-index or special materials.
• Automatic Drill-Mount Detection
• Let Gravitech pinpoint drill-mount holes instantly—no manual programming. Spend minutes, not hours, on rimless and semi-rimless orders.
• Versatile Finishing Options
• The Emotion 3 can handle V-bevels, mini-bevels, and grooving at a fixed 10° angle. It also does back-and-front chamfering. This tool adapts to every frame style and delivers a professional-grade finish every time.
• Intuitive Touchscreen Interface
• Navigate all functions—centering, blocking, edging, job recall—on a single, high-resolution display. Shape libraries, job memory, and USB import/export keep your most common tasks just a tap away.
• Comprehensive Shape Administration
• Store up to 2,000 jobs and 10,000 shapes. You can change parameters easily, like A/B sizing, axis shifts, and custom contours. This gives you complete design freedom.

Technical Specifications

• Footprint: 29.4″ W × 23.6″ D × 17.9″ H
• Weight: 151 lb (68.5 kg)
• Power: 230 V – 50 Hz or 115 V – 60 Hz
• Compliance: EN 61010-1, 2006/42/EC, 2014/35/EU, 2014/30/EU; UL/CSA 61010-1 (120 V)

Why Briot Emotion 3?

Made in Normandy, France, the Emotion 3 comes with a 2-year warranty from Visionix. It is designed for reliability and long-lasting use. Whether increasing production or adjusting single orders, it improves speed and accuracy.

Ready to transform your finishing lab?

Contact us today to request a demo or custom quote for the Visionix Briot Emotion 3, and see how easy perfect eyewear can be.
